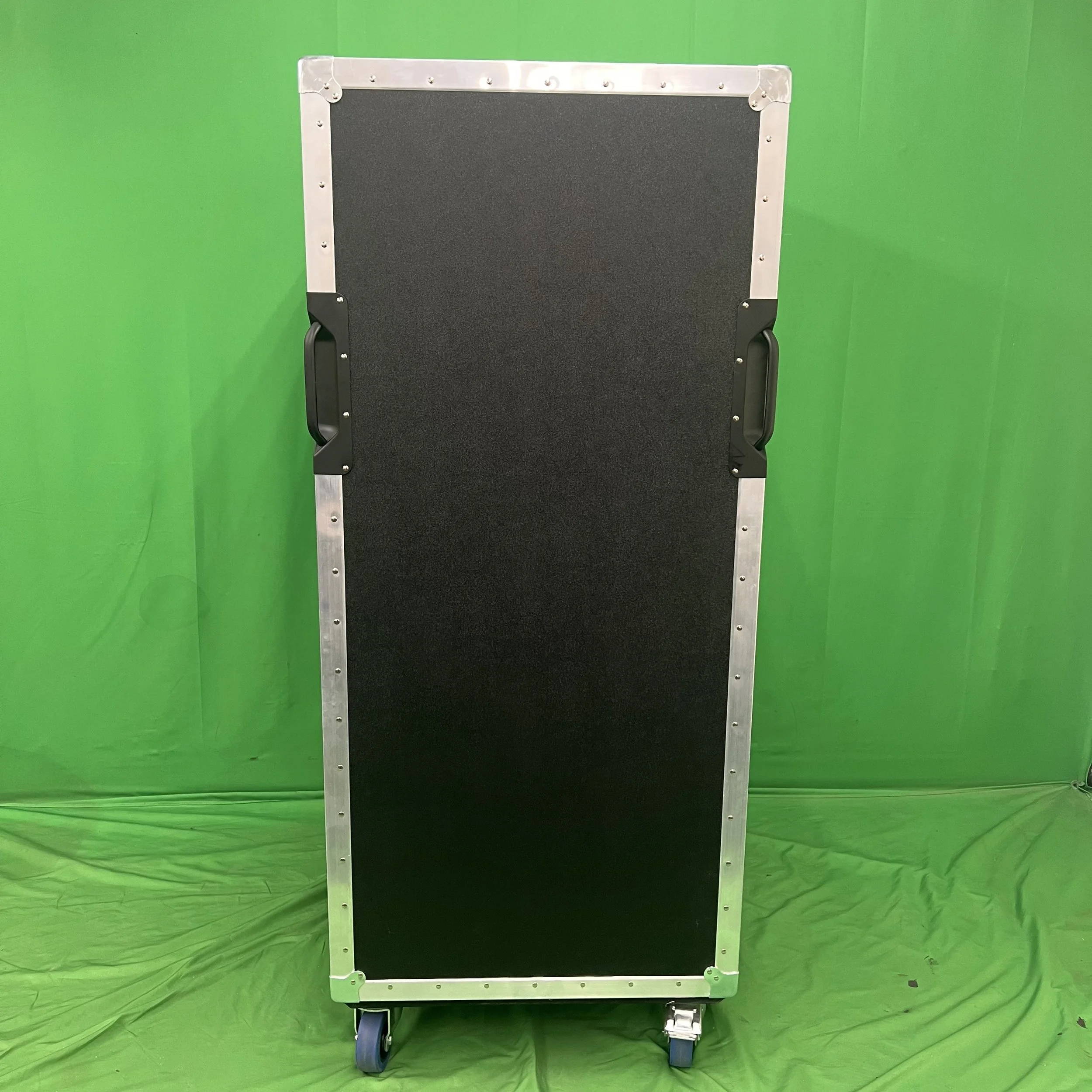

22ru Custom Rack w/ Drawers #1
Omega Part #: oc-11100
Case Exterior Material:
1/2" Ply
Recessed Handles On Body
Corner Handles On Lids
Lg. Twist Latches
Lg. Flat Corners
Aluminum Angle & Valance
4x1.4” Casters 2 w/ or w/o Brake
2 3/4” Lid
Case Interior Details:
Lid:
Front Lid w/ Adjustable Table Legs
Rear Lid w/ High Density Strips
Case:
2” Foam Lined
2” Shock Absorbers (Lordmounts)
1/2” Fixed Partitions
Pass-Through Holes from Bottom Rack to Top Rack
Shell Material:
1/2" Color ply Interior
Assembled w/ Angle & Split Rivets
“U” Channel
Full Hole Rack Rail with 10/32 UNF Threaded Mounting Holes
Bottom Shell Details:
20ru Rack Rail (35”) Qty: 4 Sets
31” Front To Rear Rail
21” Front to 2nd Rail
3” Rear to 3rd Rail
Pass-Through Holes from 20ru to 2ru
Top Shell Details:
2ru Rack Rail (3.5”) Qty: 2 Sets
31” Front To Rear Rail
Pass-Through Holes from 2ru to 20ru
Drawers:
Qty: 2 Custom Drawer Back to Back
Drawer Cut Short From Rear For Pass-Through Holes
Case Specs:
WEIGHT: N/A
OD: 25 1/4” x 39 1/2” x 54 1/2” (LxWxH)
