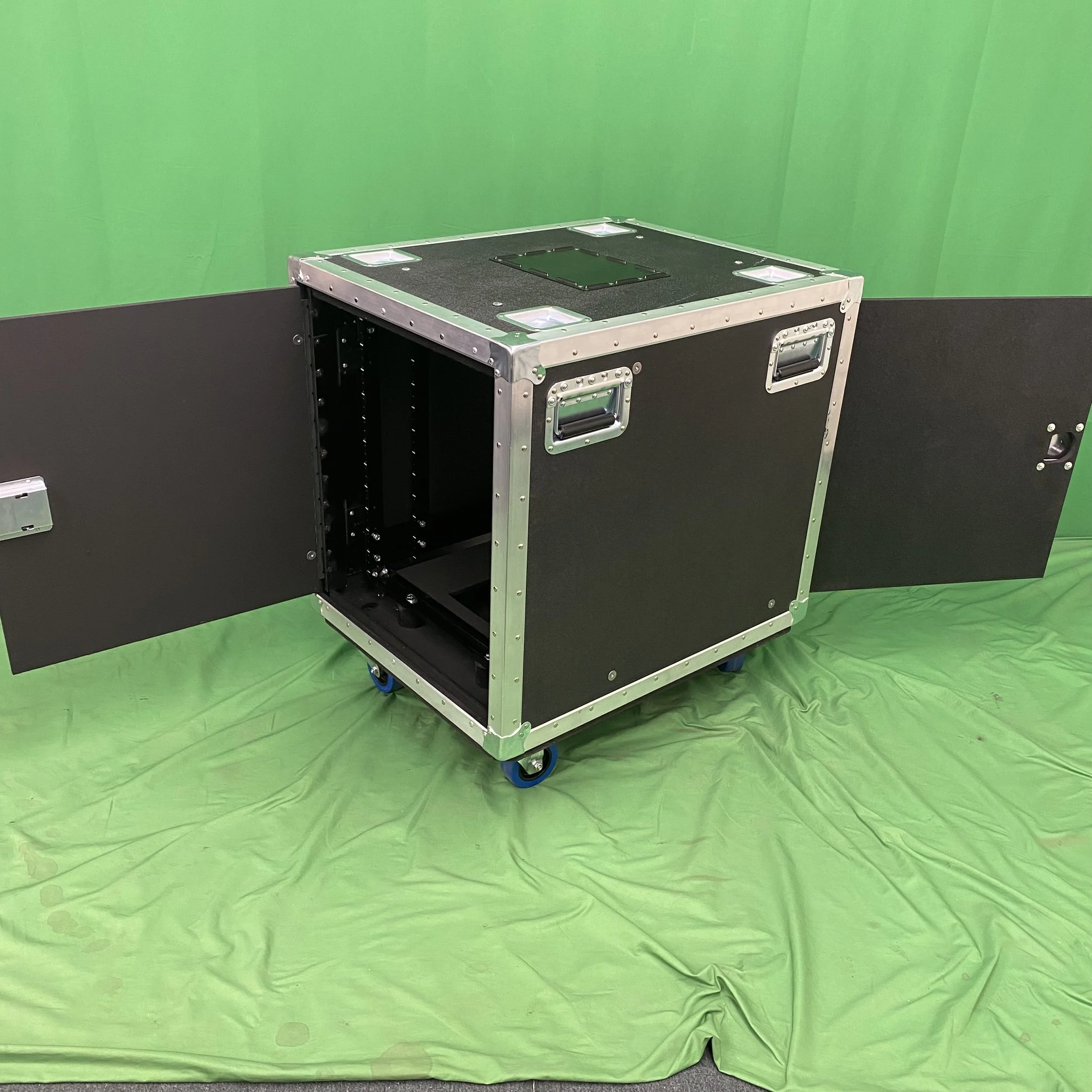

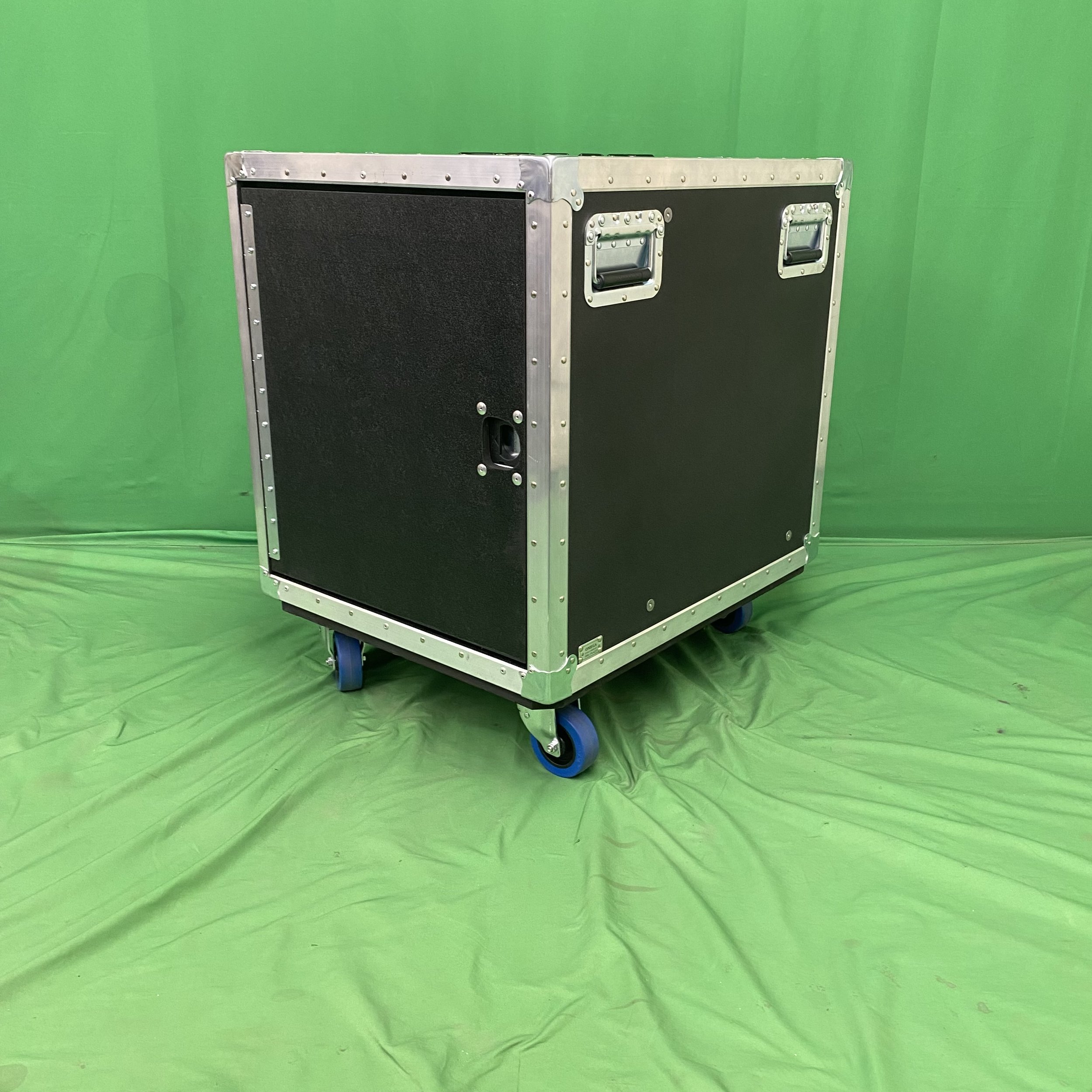

12ru Air Flow Pocket Door Rack 22”RxR #2
Omega Part #: oc-11148
Case Exterior Material:
1/2" Ply
Recessed Handles
Lg. Twist Latches
Lg. Flat Corners
Aluminum Angle & Valance
4” Casters 2 w/ or w/o Brake
Flat Pocket Doors
Case Interior Details:
Lids:
Pocket Door w/ Custom Glides
Case:
1” Shock Absorbers (Lordmounts)
1 5/8” Shock Absorbers (Lordmounts)
Shell Material:
Custom Built OMEGA CASE Aluminum Air Flow Rack Frames
ADJUSTABLE RACK RAIL DEPTHS FROM 12-24”
Qty: 8 - Full Hole Rack Rail with 10/32 UNF Threaded Mounting Holes
Shell Details:
12”sp Rack Rail (21”) (Qty: 8)
22” Front To Rear Rail
Recessed 3 1/4” From Front & Rear
14” Middle Rails
Frame Base Board Support w/ 7x16 Air Flow Cutout
Case Specs:
WEIGHT: 114LBS
OD: 23 1/4” x 29 1/2” x 26 3/8” (LxWxH)
