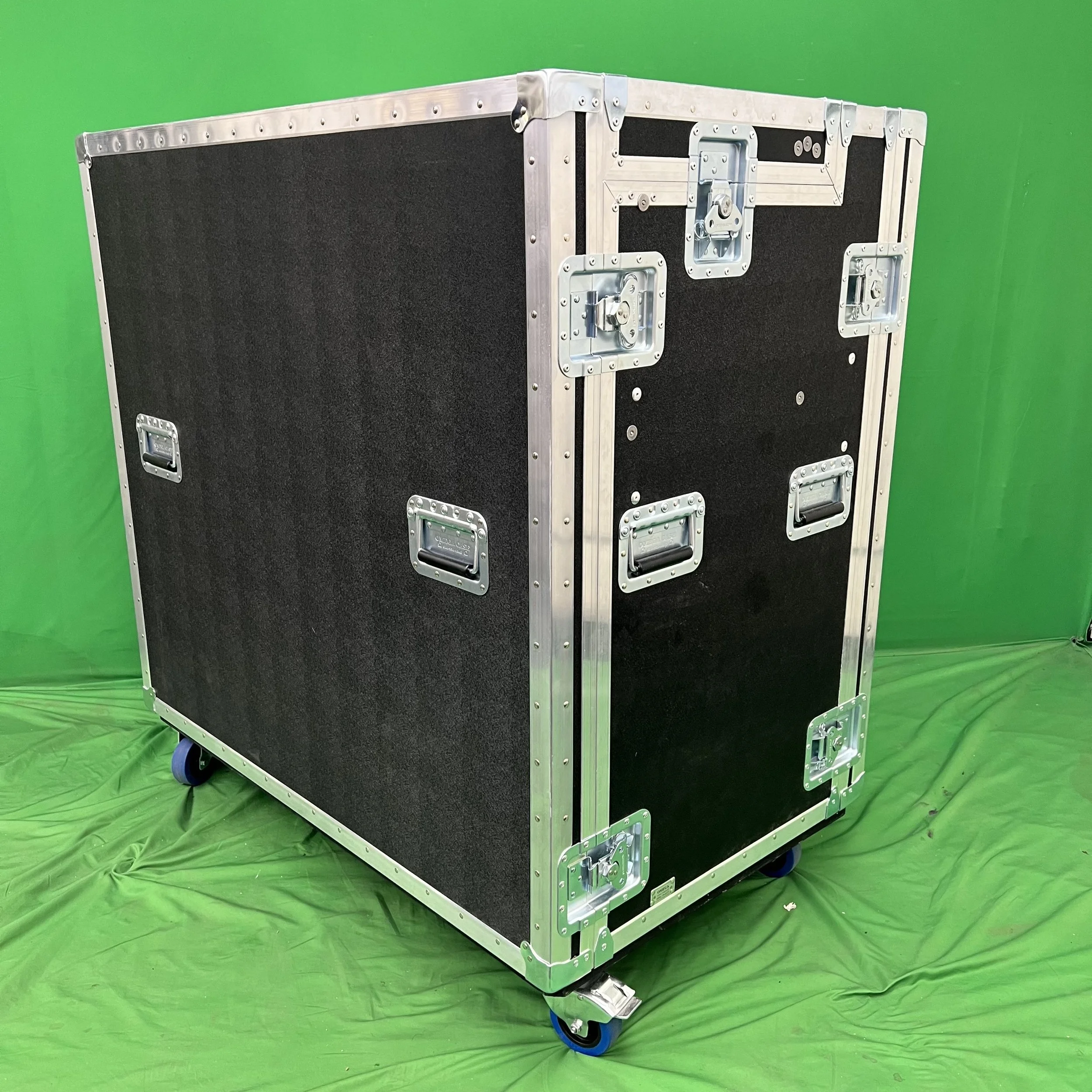

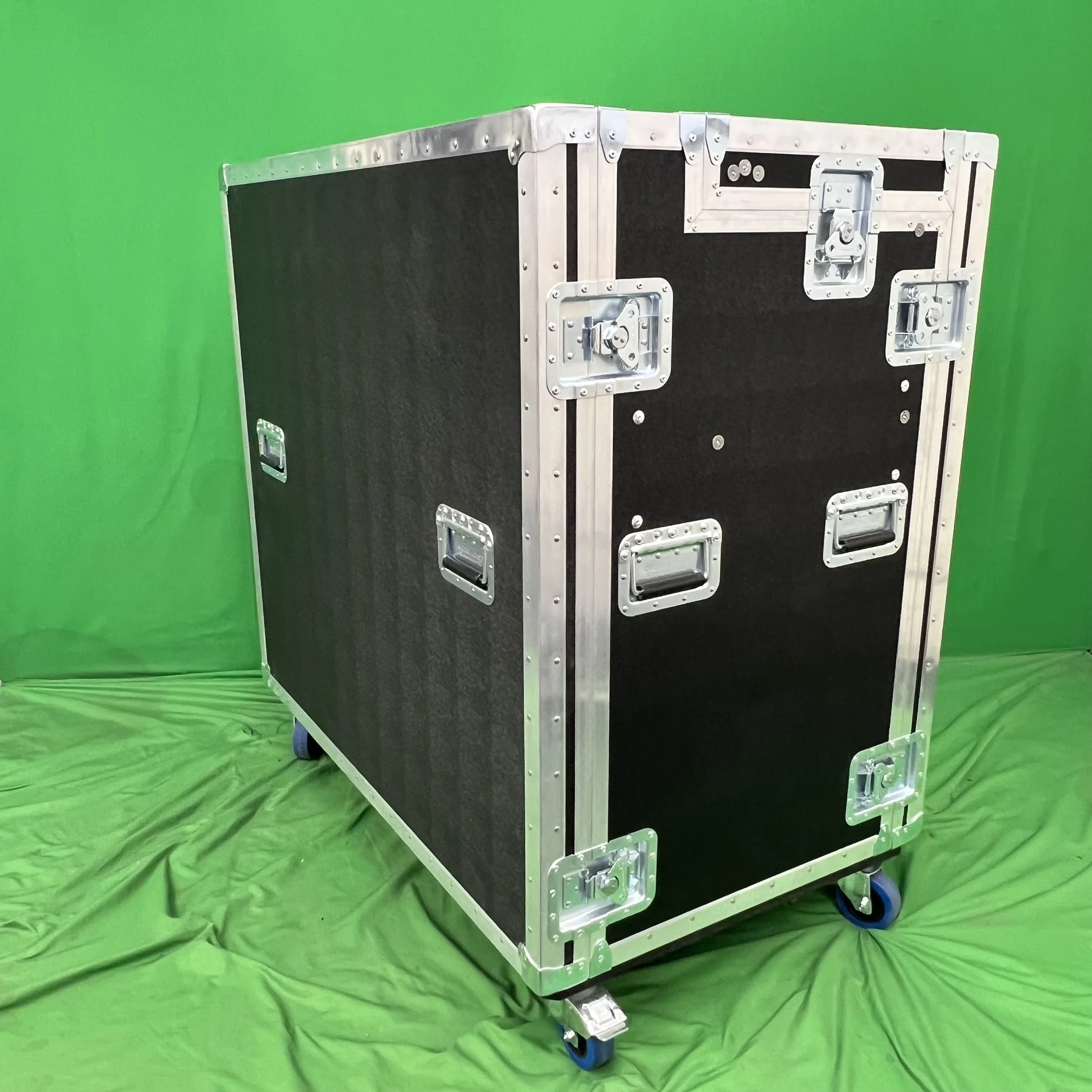

Production Workstation #8
Omega Part #: OC-11152
Exterior Material:
1/2" ply
Recessed Handles
Lg. Twist Latches
Lg. Flat Corners
Piano Hinge
Aluminum Angle & Valance
4x1.4” Casters 2 w/ Brake
Interior Details:

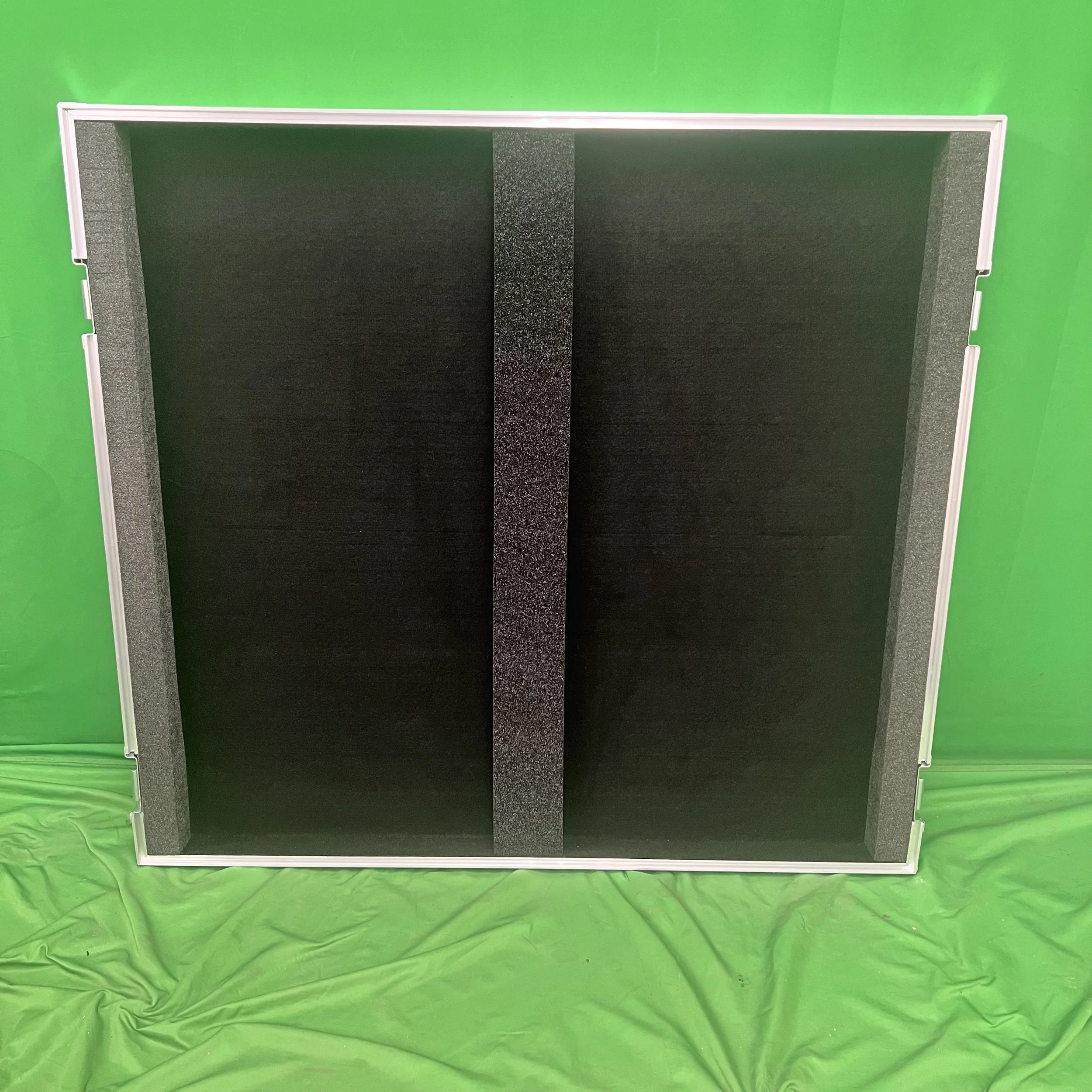

Lid:
Front & Rear Removable Lids
High Density Foam Strips
Hinging Top Lid
Lined w/ Black Carpet
40lbs Gas Springs (80lbs Total)
Base:
1/2” Colorply Fixed Partition w/ “U” Channel
Slide Out Work-surface
Work-Surface is w/ Color Ply
32 3/4” From Floor to Top of Work-Surface
Fixed Smooth Table Top
37 1/4” From Floor to top of Work-Surface
Shell Material:
1/2" Color ply Interior
Assembled w/ Angle & Split Rivets
“U” Channel
Full Hole Rack Rail
10/32 UNF Rack Rails
Shell Details:
Dual 3ru Racks Above Work Table Top
4” Rail to Rail
1” Foam Lined Shock
1” Lordmounts Shock Absorbers
Dual 12ru Racks Below Work Table Top
21 1/4” Rail to Rail
1” Foam Lined Shock
1” Lordmounts Shock Absorbers
Pass Through Holes between 12ru Racks.
Pass Through Holes from 12ru Racks into 3ru Racks
Case Specs:
WEIGHT: 405lbs
OD: 47” x 28 3/4” x 42 5/8” (IN)
